Specifications:

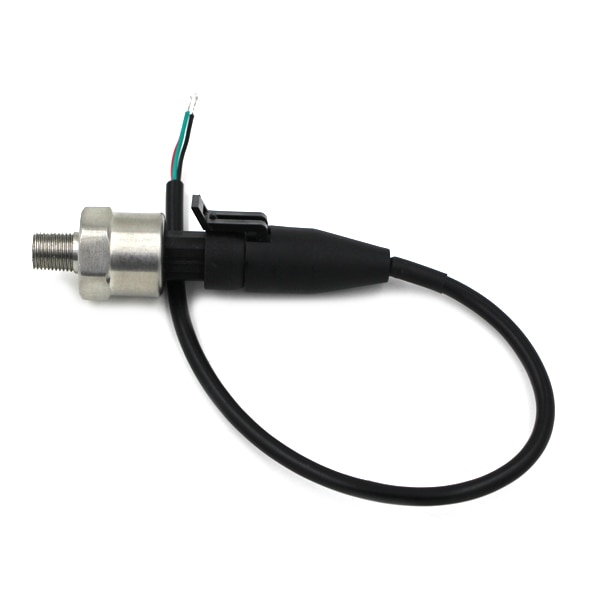

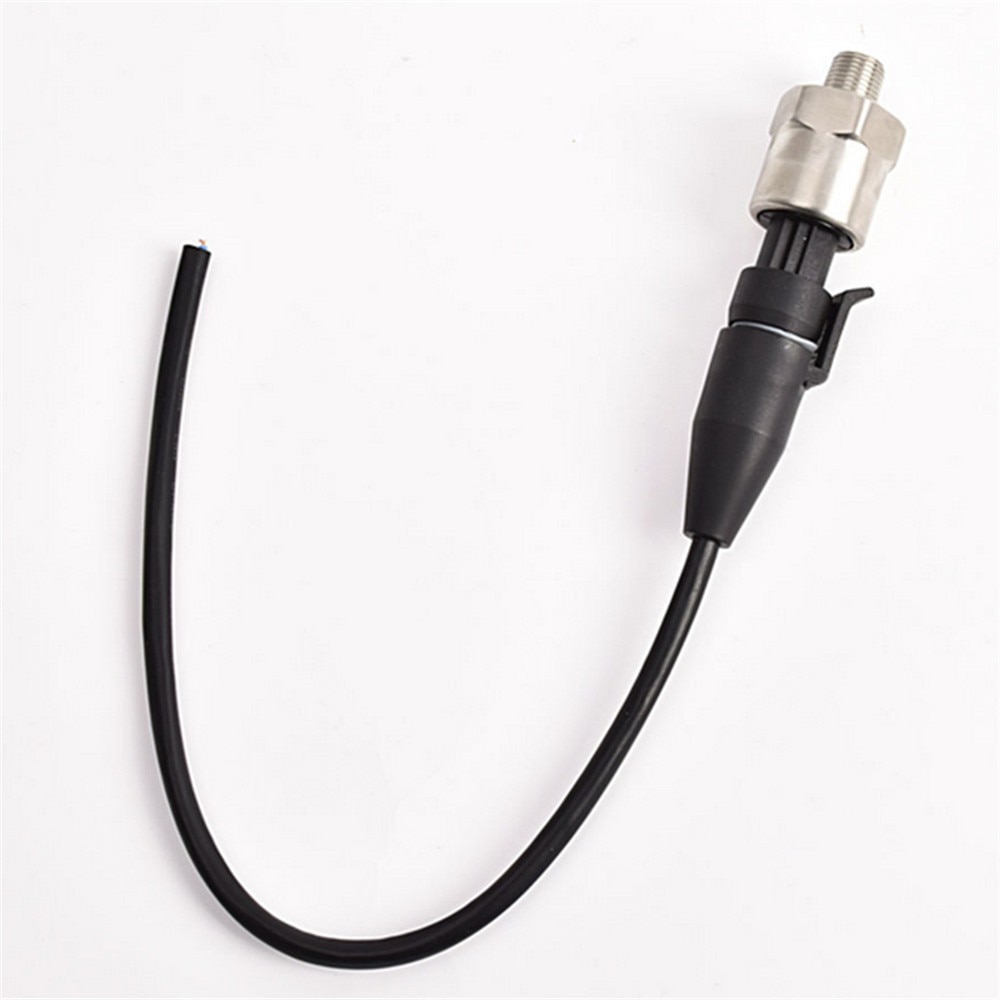

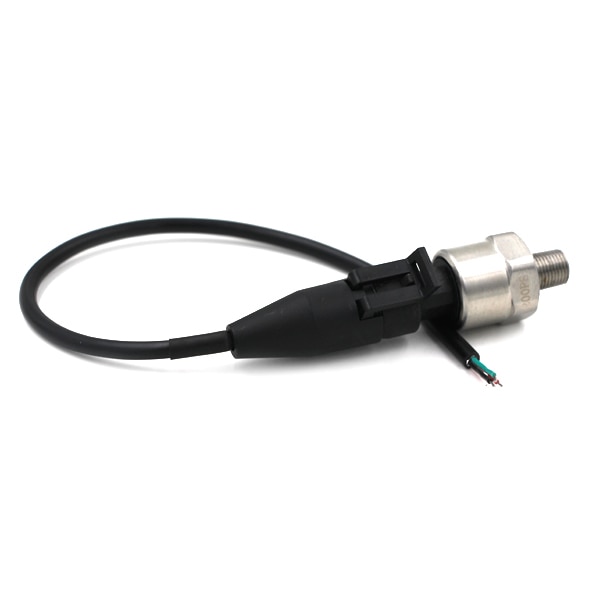

• Wiring: Red for +5V. Black for ground. Blue for signal output

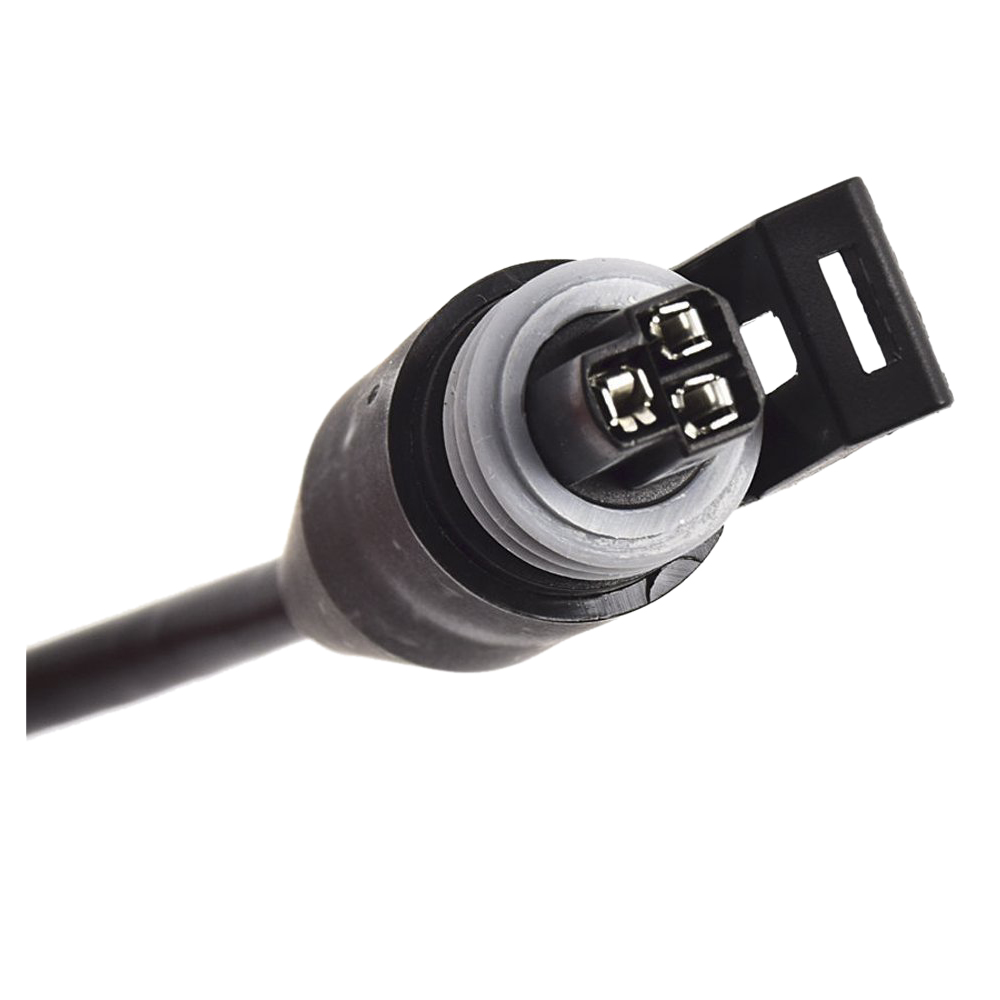

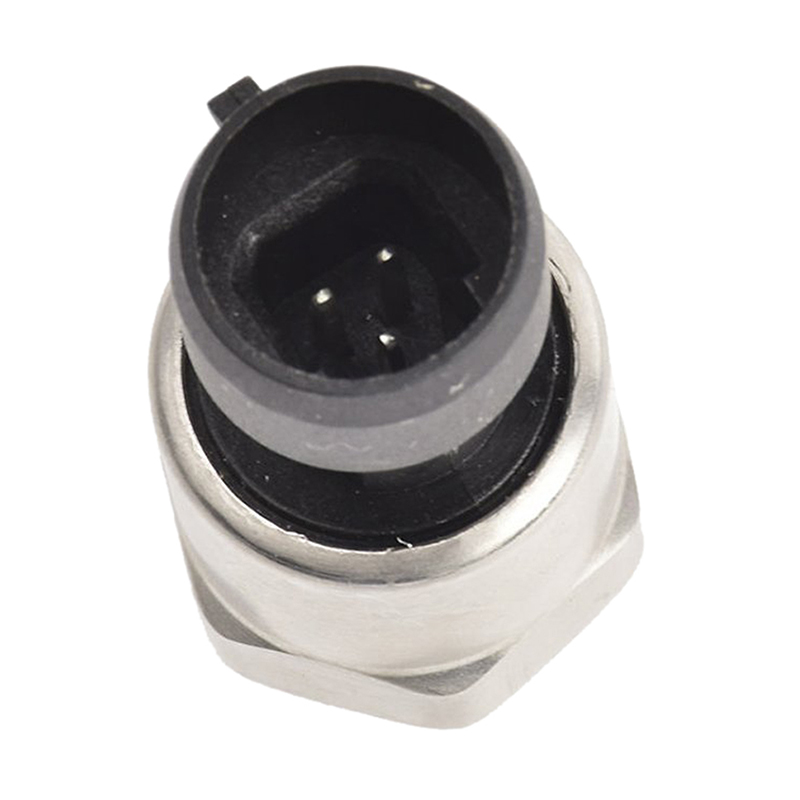

• Wiring connector: water sealed quick disconnect. Mating connector and wire harness
• Type: Oil Pressure sensor

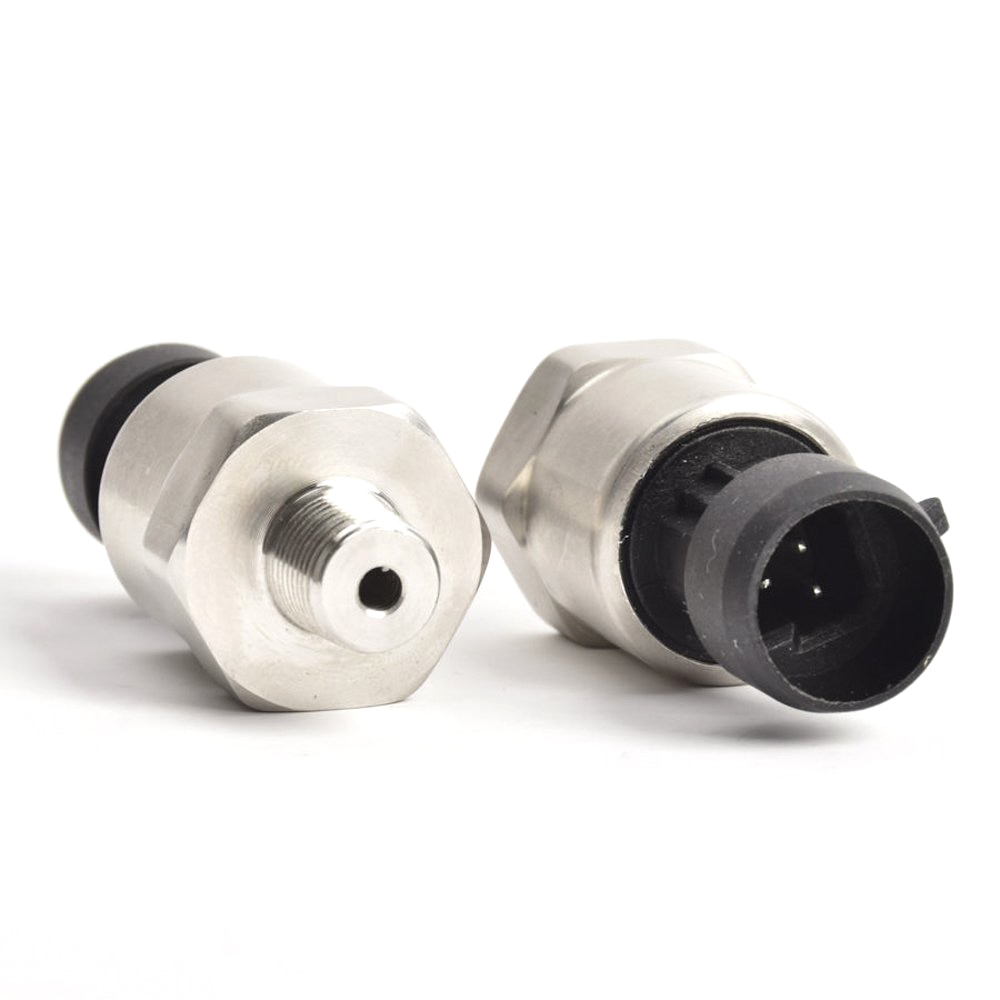

• Thread: 1/8''-27 NPT. (see our fitting set for other thread size below)
• Style: Varistor Type
• Signal Type: Voltage Signal
• Sensor Type: Piezoelectric
• Sensitivity: -14.5 psi (-1.0 bars) to 30 psi (2.0 bars)
• Resolution: within 1.5% of reading (full scale).
• Repeatability: -
• Protection Class: IP67;
• Output: 0.5V-4.5V linear voltage output, see chart below
• Measuring Range: -
• Linear: -
• Input: -14.5 psi (-1.0 bars) to 30 psi (2.0 bars)
• Hysteresis: -
• Current draw: less than 4 mA
• Burst (over or max pressure) pressure: minimum 100 psi
• Accuracy: within 1.5% of reading (full scale)
