Specifications:

• Voltage Range: 176~276V AC
• Voltage AC (Un): 230V
• Rated Voltage: 230V
• Power Supply: AC
• Phase: Single Phase
• Output Voltage: 230VAC
• Operating Temperature: -10 to 40
• Mounting: DIN rail 35mm

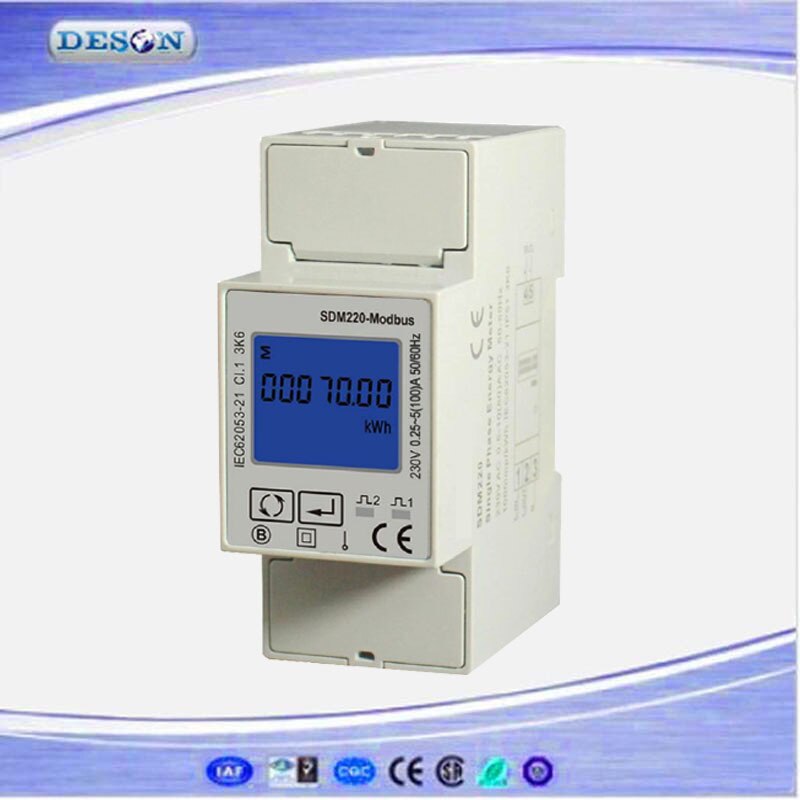

• Model Number: SDM220-Modbus
• Mini Current (Imin): 0.25A
• Measuring Energy Range: 0-99999.9Kwh
• Max. Reading: 99999.9kWh
• Max Operating Current: 100A - 119A
• Max. Current (Imax): 100A
• Frequency: 50/60Hz(±10%)
• DIY Supplies: Electrical
• Display Type: Digital Only
• Display: LCD with blue backlit
• Din rail dimensions: DIN 43880
• Dimensions: 99mmx36mmx63mm
• Brand Name: DESDQCN
• Base Current (Ib): 5A
• Accuracy Class: better than Class 1
