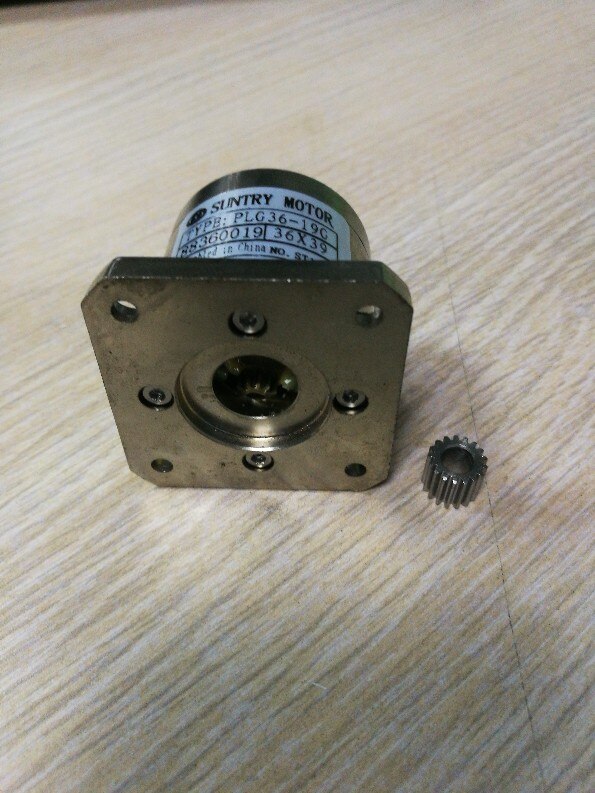

Planetary reducer 36mm diameter Square flange for the assembly NEMA17 stepper motor ratio 189:1 or 264:1 or 369:1 or 516:1
Planetary reducer 36mm diameter Square flange for the assembly NEMA17 stepper motor ratio 189:1 or 264:1 or 369:1 or 516:1

Planetary reducer 36mm diameter Square flange for the assembly NEMA17 stepper motor ratio 189:1 or 264:1 or 369:1 or 516:1

SKU: AC-09XMDN0M6M3

Price

£55.69

Free shipping

MSRP:£76.79
27%
discount

Advantages

  • Free shipping
  • 100 days returns
  • Low prices

Planetary reducer 36mm diameter Square flange for the assembly NEMA17 stepper motor ratio 189:1 or 264:1 or 369:1 or 516:1

Specifications:

  • Used for: Step brushless motor( square flange)
  • Structure: Planetary gearbox
  • Rated Power: /
  • Radial load: less than or equal to 35N
  • Radial gap: less than or equal to 0.04mm
  • Planetary reducer length: 43mm
  • Output Torque: Rated allowable load6N.M, instantly allowed to load 12N.M.
  • Output Speed: variable speed as different gear ratio
  • Output bearing form: ball bearing
  • Model Number: PLANET GEARBOX36XG189-516
  • Input Speed: /
  • Inner ring gear material: steel teeth
  • Gearing Arrangement: Planetary
  • Gear ratio: 189:1 264:1 369:1 516:1
  • Axial load: less than or equal to 8N
  • Axial clearance: less than or equal to 0.02mm
