Specifications:

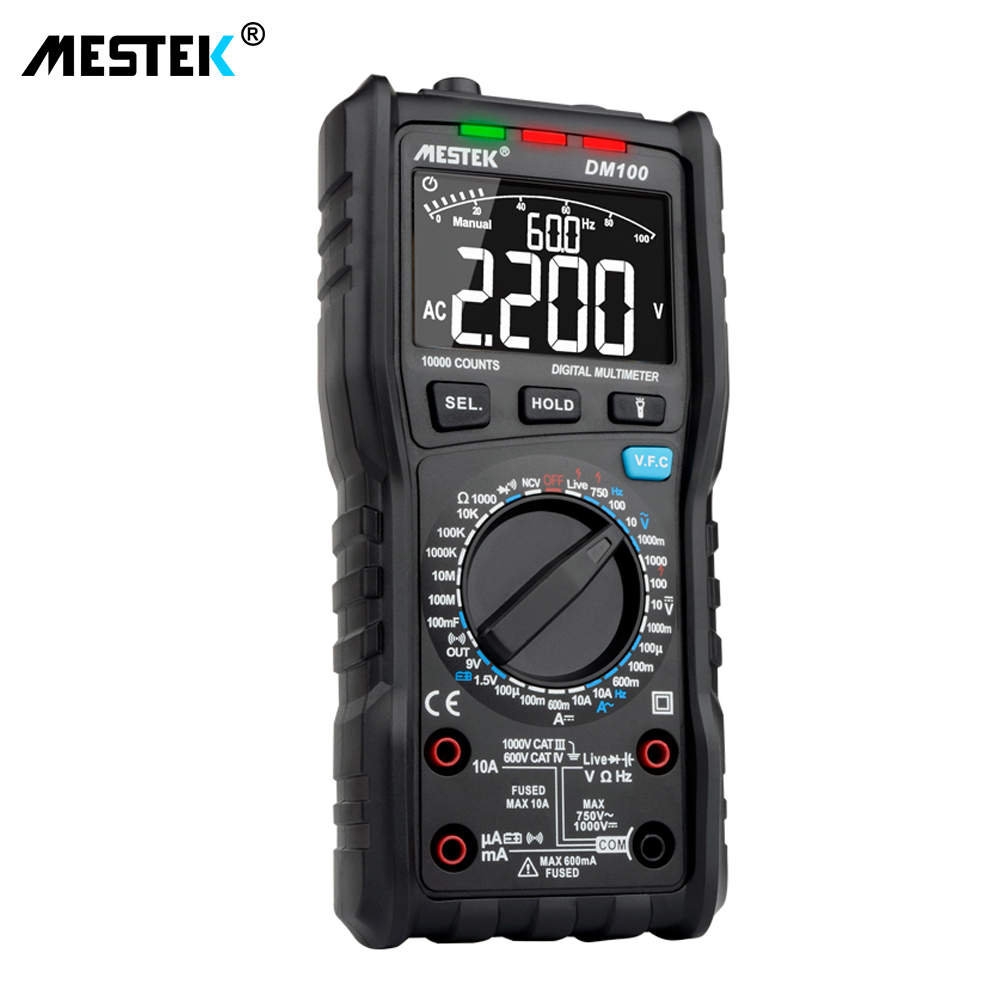

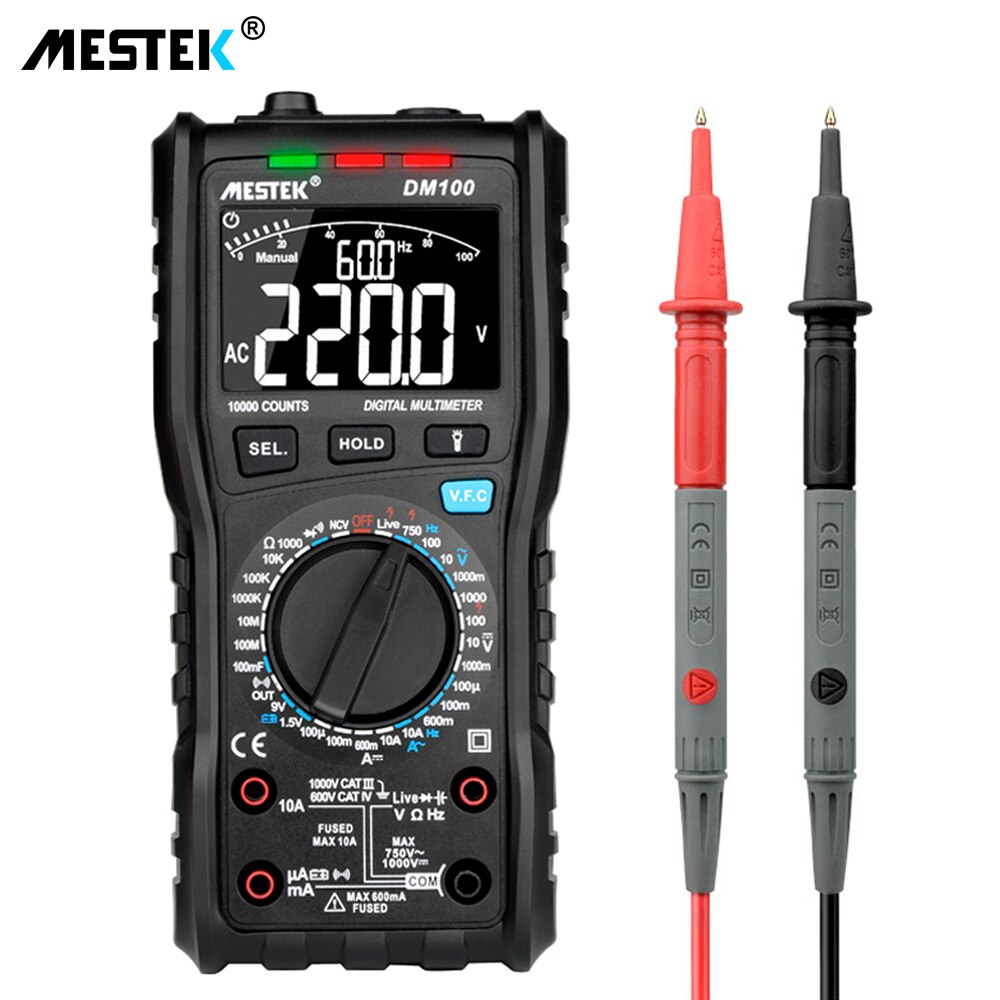

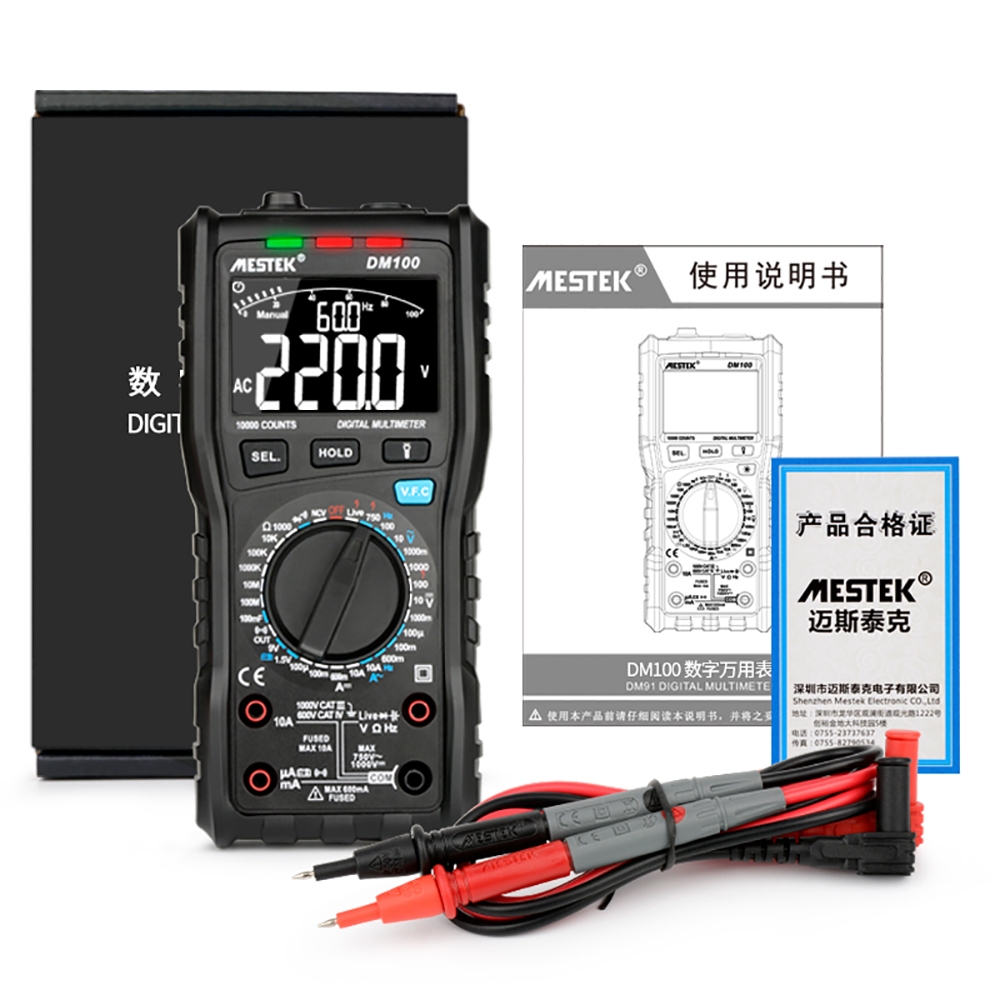

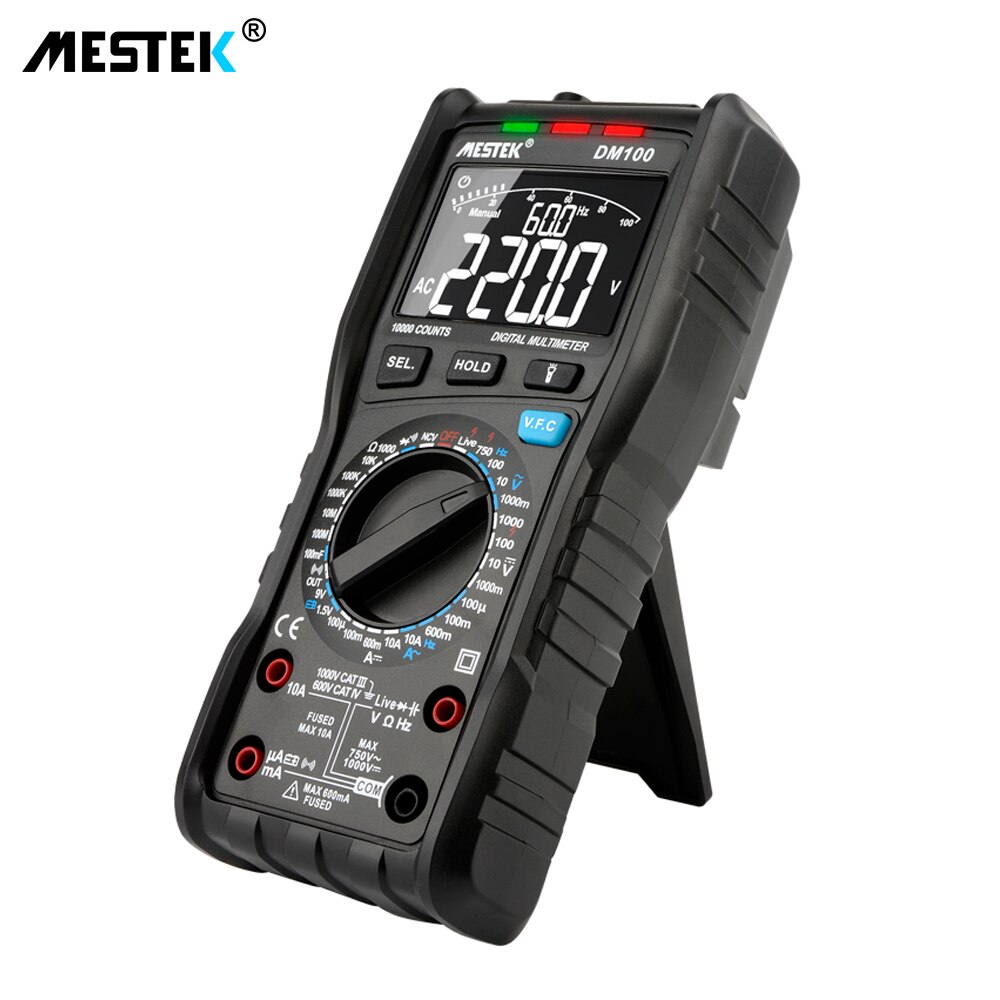

• Model Number: DM100
• LIVE: fire line identification
• screen display: reverse display AV screen
• Brand Name: MESTEK
• Display Type: Digital Display
• True RMS: 1kHz
• wrong insertion alarm: wrong plug display LUSE and buzzer alarm
• Diode: 0.15V~3V

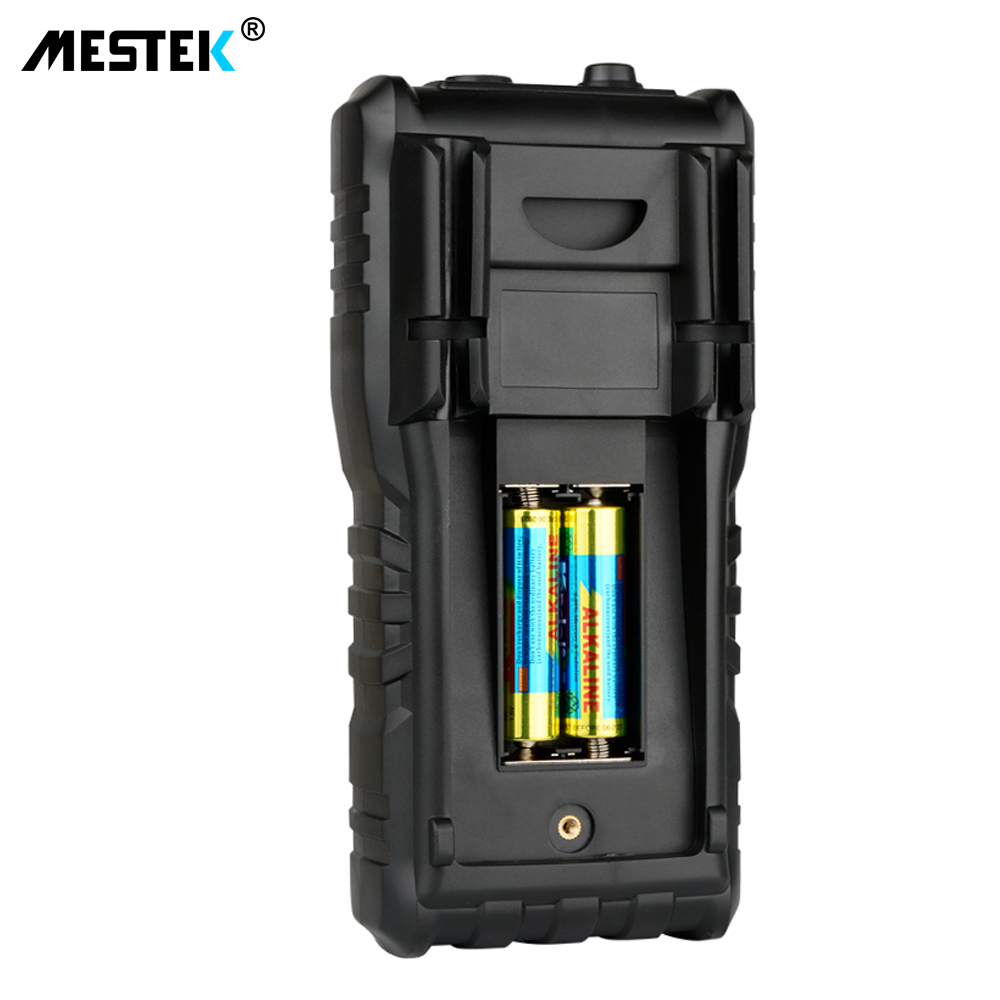

• battery measurement: 0~1.5V/0~9V
• Automatic shut-down: 15 minutes without operation
• Measuring Resistance Range: 0~999.9ohm/9.999Kohm/99.99Kohm/999.9Kohm/9.999Mohm/99.99Mohm
• fuse alarm: 600mA/10A
• under voltage prompt: less than 2.4V
• overload protection: less than 250v
• Is Smart Device: No
• input resistance: 10Mohm
• Measuring Capacitance Range: 0~9.999nF/99.99nF/999.9nF/9.999uF/99.99uF/999.9uF/9.999mF
• DC Voltage: 0~999.9mV/9.999V/99.99V/999.9V
• high speed sampling: sampling rate 10 times/second
• on-off beep: 0~100Ohm resistance<15Ohm
• buzzer detection: 2kHz/2.7kHz/3V
• NCV: non-contact AC voltage detection
• display count: 10000 count
• ambient temperature: 0~60C
• flashlight: Yes
• DIY Supplies: ELECTRICAL
• Measuring Inductance Range: none
• Operating Temperature: 0 - 40 ℃
• Operating Mode: auto range
• DC Current: 0~99.99uA/999.9mA/600mA/10.00A
• environment humidity: 20~95%
• AC Voltage: 0~999.9mV/9.999V/99.99V/750V
• AC Current: 0~99.99mA/600mA/10.00A
• Dimensions: 185*85*40mm
• data retention: Yes
