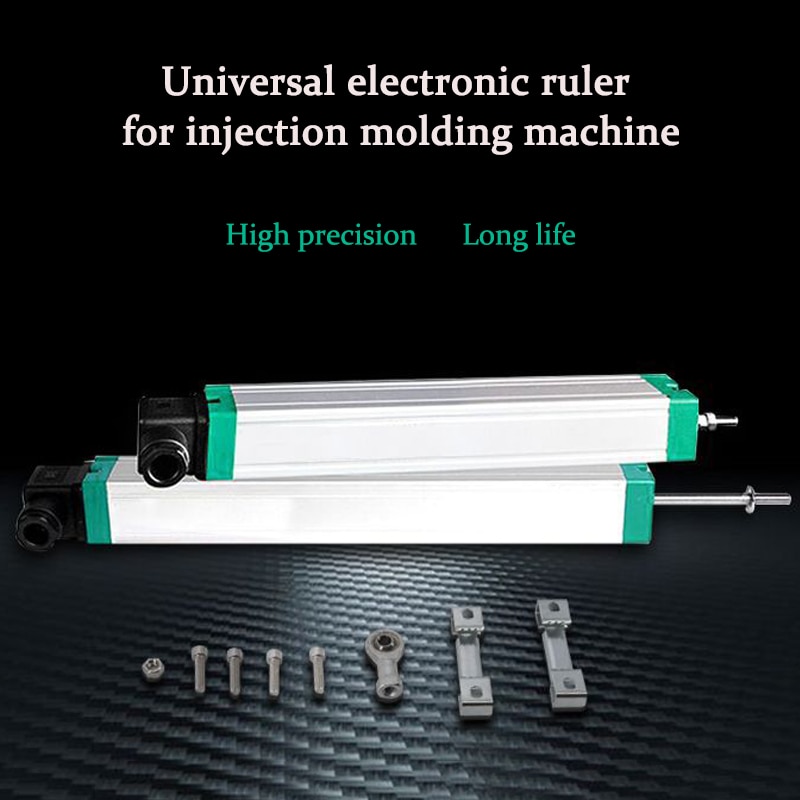

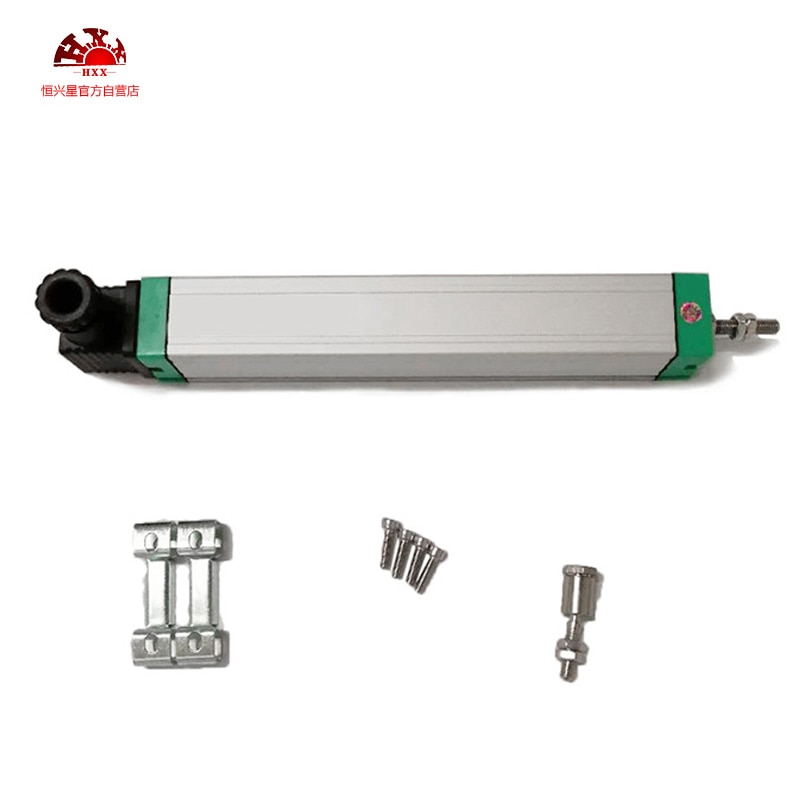

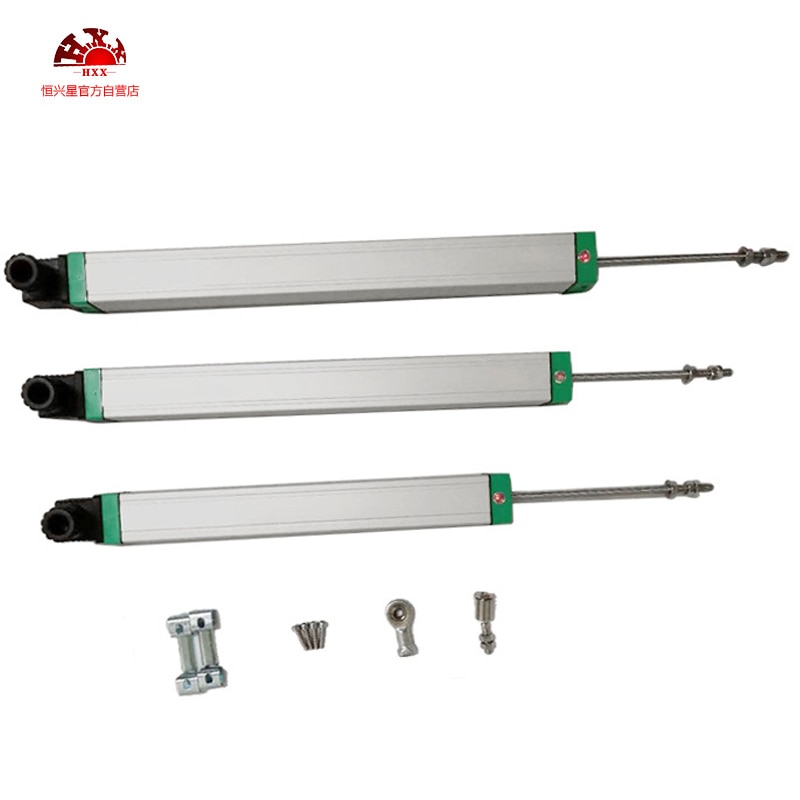

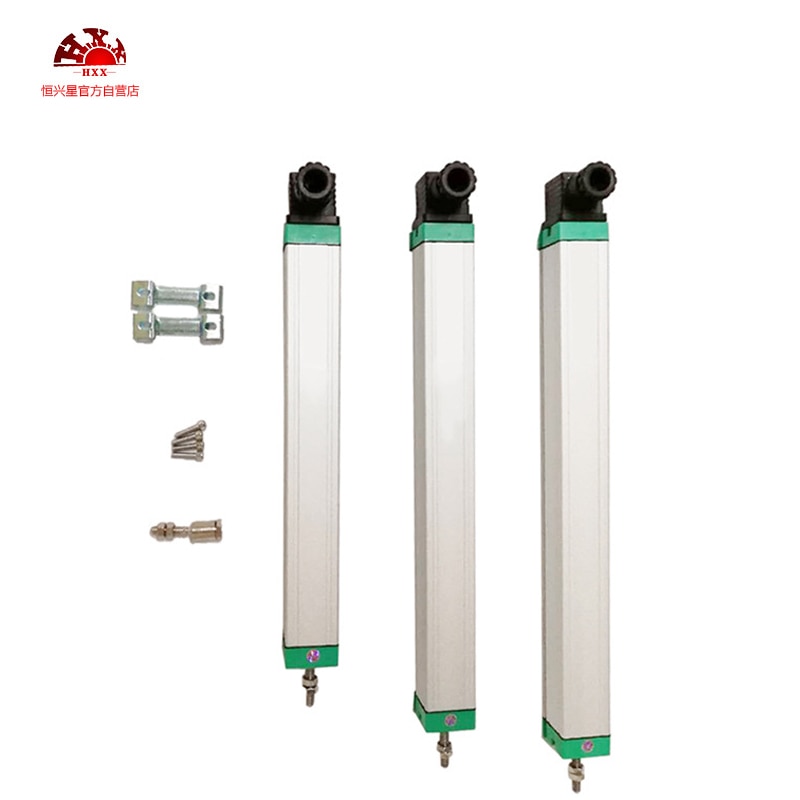

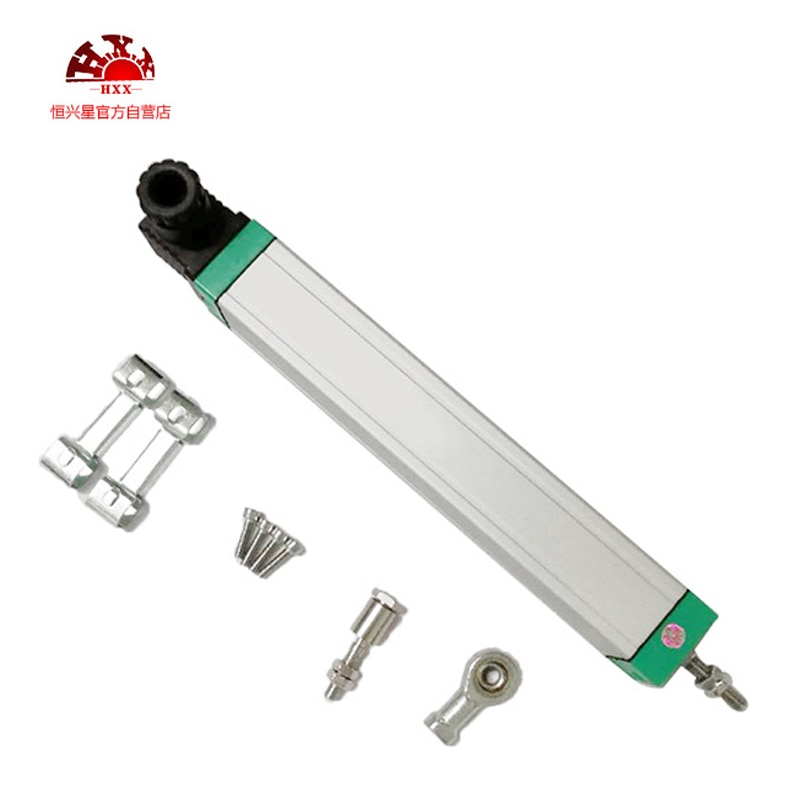

HXX KTC Electronic Pull Rod Ruler Position Transducer Linear Scales Displacement Sensor Injection Molding Lathe Machine Tool
HXX KTC Electronic Pull Rod Ruler Position Transducer Linear Scales Displacement Sensor Injection Molding Lathe Machine Tool
HXX KTC Electronic Pull Rod Ruler Position Transducer Linear Scales Displacement Sensor Injection Molding Lathe Machine Tool
HXX KTC Electronic Pull Rod Ruler Position Transducer Linear Scales Displacement Sensor Injection Molding Lathe Machine Tool
HXX KTC Electronic Pull Rod Ruler Position Transducer Linear Scales Displacement Sensor Injection Molding Lathe Machine Tool

HXX KTC Electronic Pull Rod Ruler Position Transducer Linear Scales Displacement Sensor Injection Molding Lathe Machine Tool

Multiple variants

from

£38.79

Free shipping

MSRP:£53.99
28%
discount

Select a variant:

Advantages

  • Free shipping
  • 100 days returns
  • Low prices

HXX KTC Electronic Pull Rod Ruler Position Transducer Linear Scales Displacement Sensor Injection Molding Lathe Machine Tool

Specifications:

  • Working voltage: (For 5kΩ-20kΩ): <24V
  • Temperature coefficient: <1.5ppm/℃
  • Size B (mm): Effective travel
  • Size A (mm): Effective travel + 80
  • Resolution: The essence is infinite
  • Resistance ± 5%: 5.0
  • Repeatability accuracy: 0.01mm
  • Output type(voltage): varying with displacement
  • Model Number: KTC
  • Model: KTC
  • Load characteristics: >1kΩ
  • Linear accuracy (±% FS): <0.05%
  • Brand Name: GCSHXX
  • Ambient temperature: -30 to +125℃
